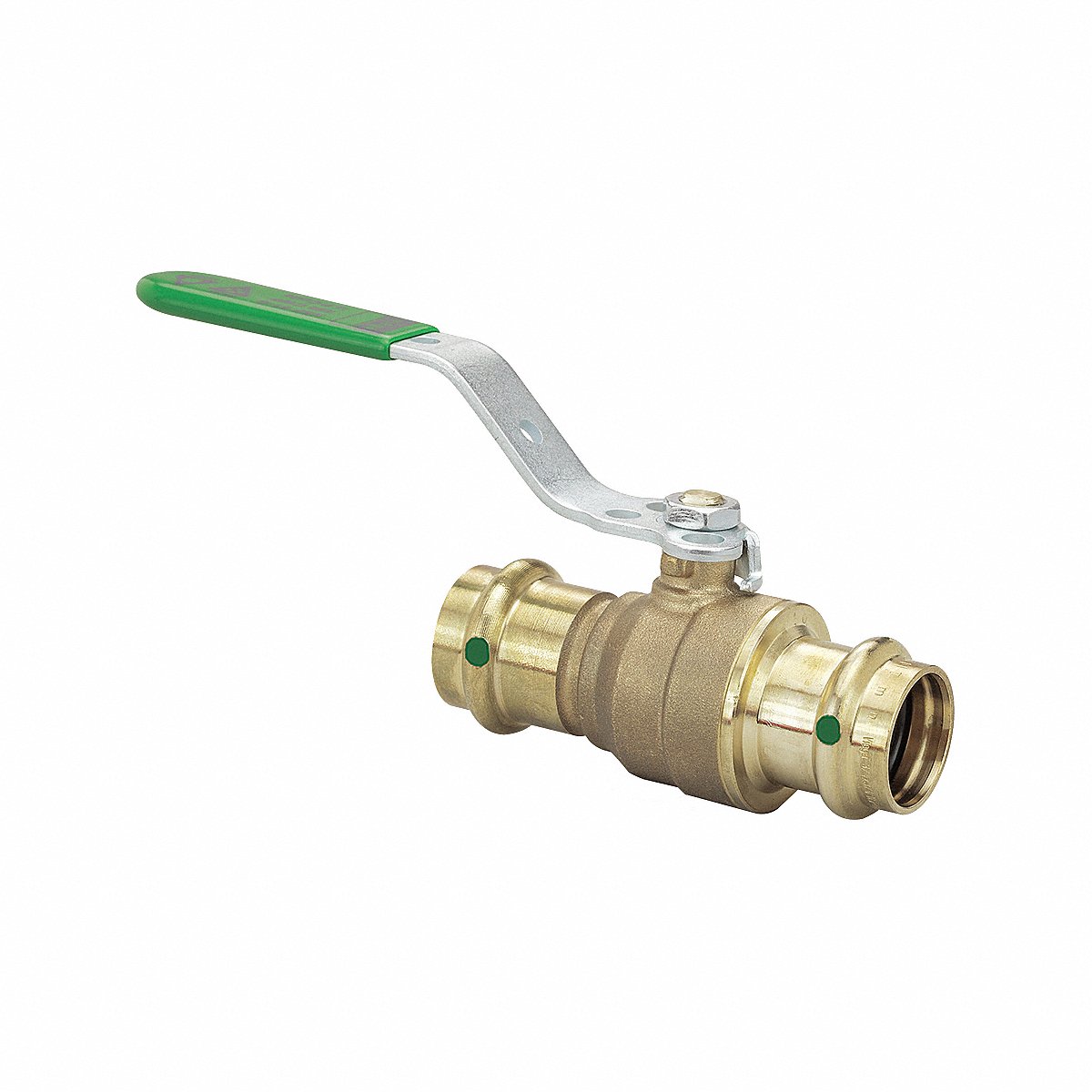

Viega Propress Manual 2-Way Ball Valve, Press, Bronze (79935)

Vacuum Service Rating: -29.2 in Hg

Connection Type: Press x Press

For Media: Potable Water

Color - Valve Handle: Green

Handle Material: Metal

Media Temp. Range: 0 Degrees F to 250 Degrees F

Ball Material: Stainless Steel

Valve Ways: 2-Way

Seat Material: PTFE

NSF Certifications for Food and Drinking Water: NSF 61

Stem Material: Brass

Overall Length: 4.32 in

Maximum Pressure - Combustible Gas: Not Rated

Vented Ball Valve: Non-Vented

Body Material: Bronze

Handle: Lever

Maximum Pressure - Operating: 200 psi

Valve Body Style: Straight

Ball Port Style: Full Port

Nominal Valve Size: 1-1/4 in

3-A Standard Compliance: Not Rated

Standards: FM Listed, IAPMO: Uniform Plumbing Code, CRN, 13D and 13R: Fire Sprinkler, NSF/ANSI 372: Drinking Water System Components - Lead Content, NFPA 13, PHCC: National Standard Plumbing Code, ICC, UL Listed, CSA

Seal Material: EPDM

Valve Construction: Two-Piece

Maximum Pressure - Steam: Not Rated
