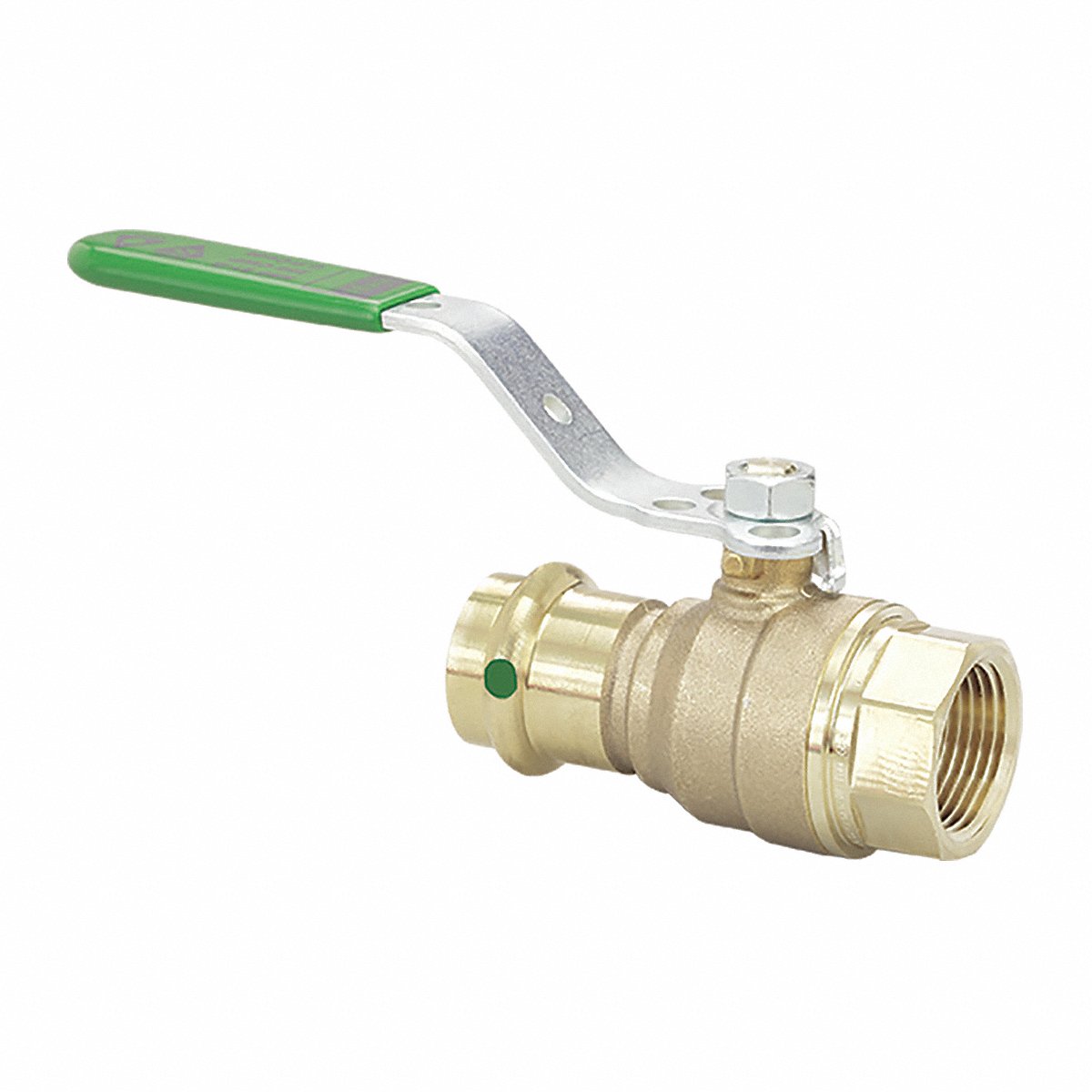

Viega Propress Manual 2-Way Ball Valve Press Bronze (79970)

Ball Material: Stainless Steel

Maximum Pressure - Combustible Gas: Not Rated

Vacuum Service Rating: -29.2 in Hg

Standards: FM Listed, IAPMO: Uniform Plumbing Code, CRN, 13D and 13R: Fire Sprinkler, NSF/ANSI 372: Drinking Water System Components - Lead Content, NFPA 13, PHCC: National Standard Plumbing Code, ICC, UL Listed, CSA

Valve Body Style: Straight

Seal Material: EPDM

Maximum Pressure - Operating: 200 psi

Vented Ball Valve: Non-Vented

Connection Type: Press x FNPT

For Media: Potable Water

Stem Material: Brass

Handle: Locking Lever

NSF Certifications for Food and Drinking Water: NSF 61

Seat Material: PTFE

Media Temp. Range: 0 Degrees F to 250 Degrees F

Maximum Pressure - Steam: Not Rated

Color - Valve Handle: Green

Body Material: Bronze

Valve Construction: Two-Piece

Overall Length: 2.77 in

Ball Port Style: Full Port

Valve Ways: 2-Way

Handle Material: Metal

3-A Standard Compliance: Not Rated

Nominal Valve Size: 1/2 in
