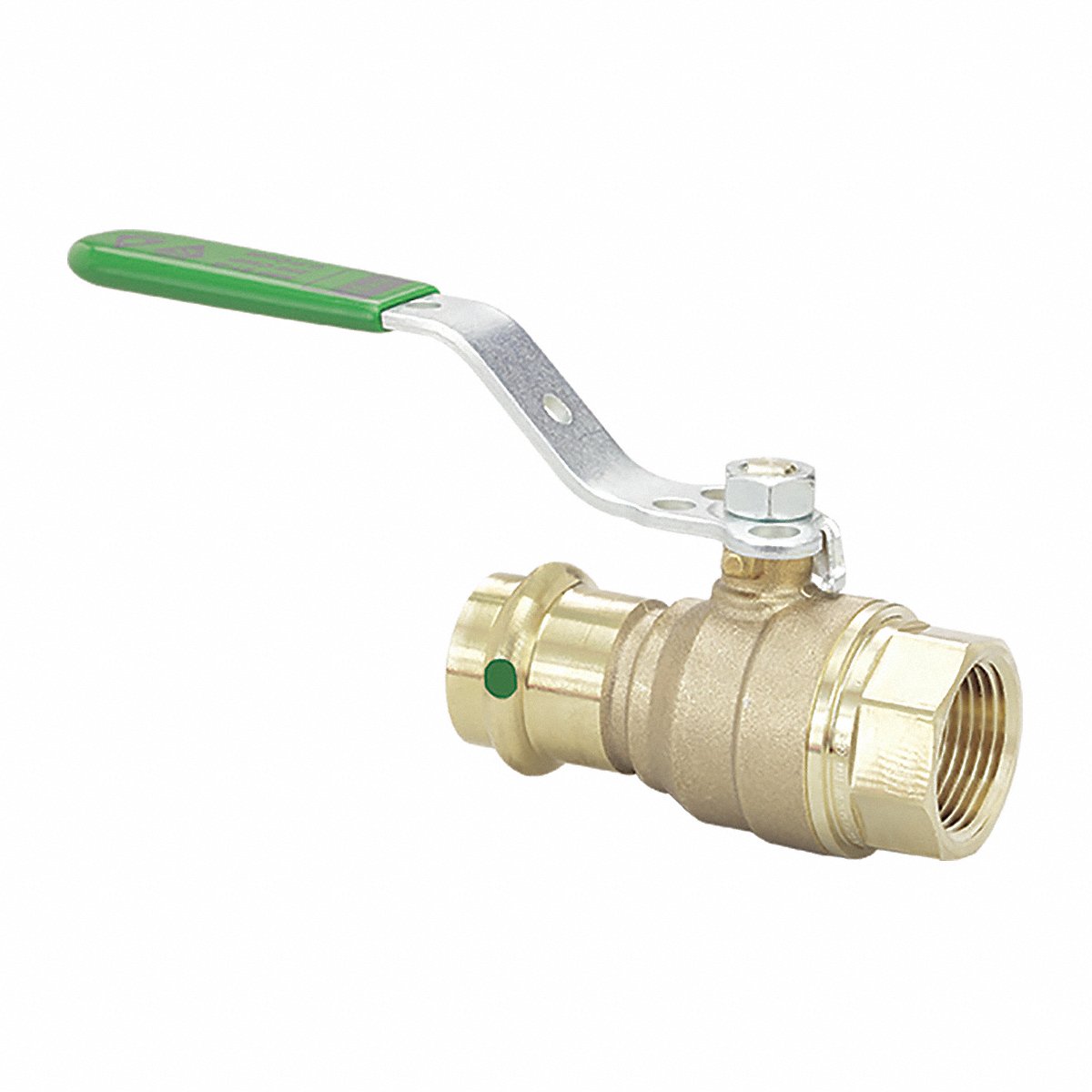

Viega Propress Manual 2-Way Ball Valve Press Bronze (79975)

Handle Material: Metal

Seat Material: PTFE

Maximum Pressure - Steam: Not Rated

For Media: Potable Water

Nominal Valve Size: 3/4 in

Maximum Pressure - Operating: 200 psi

Valve Construction: Two-Piece

3-A Standard Compliance: Not Rated

Maximum Pressure - Combustible Gas: Not Rated

Ball Material: Stainless Steel

Media Temp. Range: 0 Degrees F to 250 Degrees F

Overall Length: 3.1 in

Stem Material: Brass

Valve Ways: 2-Way

Vented Ball Valve: Non-Vented

NSF Certifications for Food and Drinking Water: NSF 61

Seal Material: EPDM

Valve Body Style: Straight

Connection Type: Press x FNPT

Standards: FM Listed, IAPMO: Uniform Plumbing Code, CRN, 13D and 13R: Fire Sprinkler, NSF/ANSI 372: Drinking Water System Components - Lead Content, NFPA 13, PHCC: National Standard Plumbing Code, ICC, UL Listed, CSA

Body Material: Bronze

Handle: Locking Lever

Vacuum Service Rating: -29.2 in Hg

Ball Port Style: Full Port

Color - Valve Handle: Green
