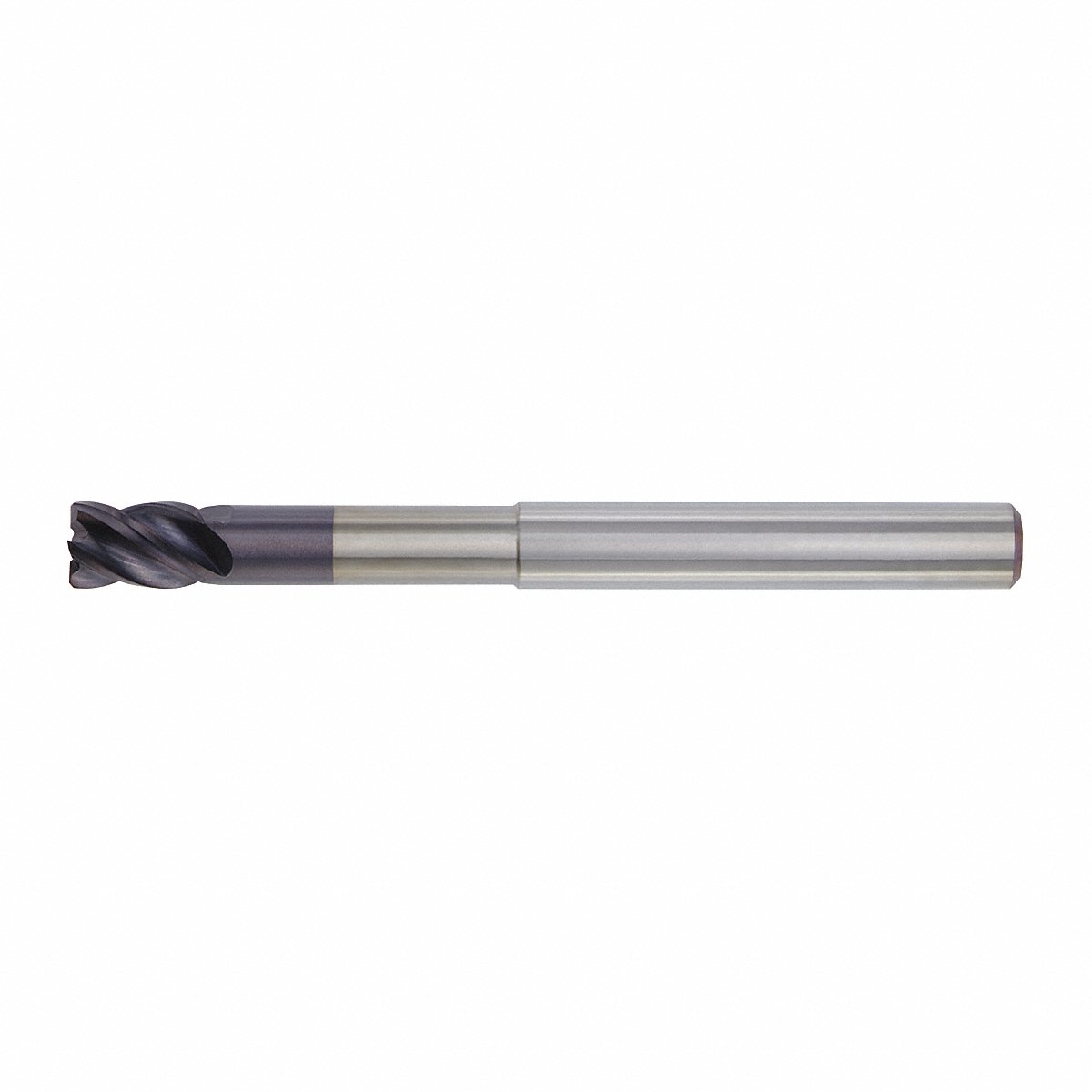

Widia Hanita Corner Chamfer End Mill 0.5 in Carbide (TF4VN513005)

Measurement System: Inch

Cutting Direction: Right Hand

Flute Type: Spiral

Length of Cut: 5/8 in

Flute Spacing: Variable

Finish - Machining: TiAlN

Overall Length: 4 in

End Mill Style: Corner-Chamfer

End Mill Application: Roughing/Finishing

Milling Diameter: 0.5 in, 1/2 in

ISO Material Group: H, S, P, M, K

Number of Flutes: 4

Shank Type - Machining: Weldon Flat

Single End/Double End: Single

Chamfer Width: 0.02 in

End Mill Cutting Type: Center Cutting

Material Application: Nickel, Titanium, Steel, Hardened Steel, Cast Iron, Stainless Steel

Neck Dia.: 0.47 in

Shank Dia.: 1/2 in

Helix Angle: 38 Degrees

Material - Machining: Carbide

Neck Length: 2.25 in

List Number: 4VN5
