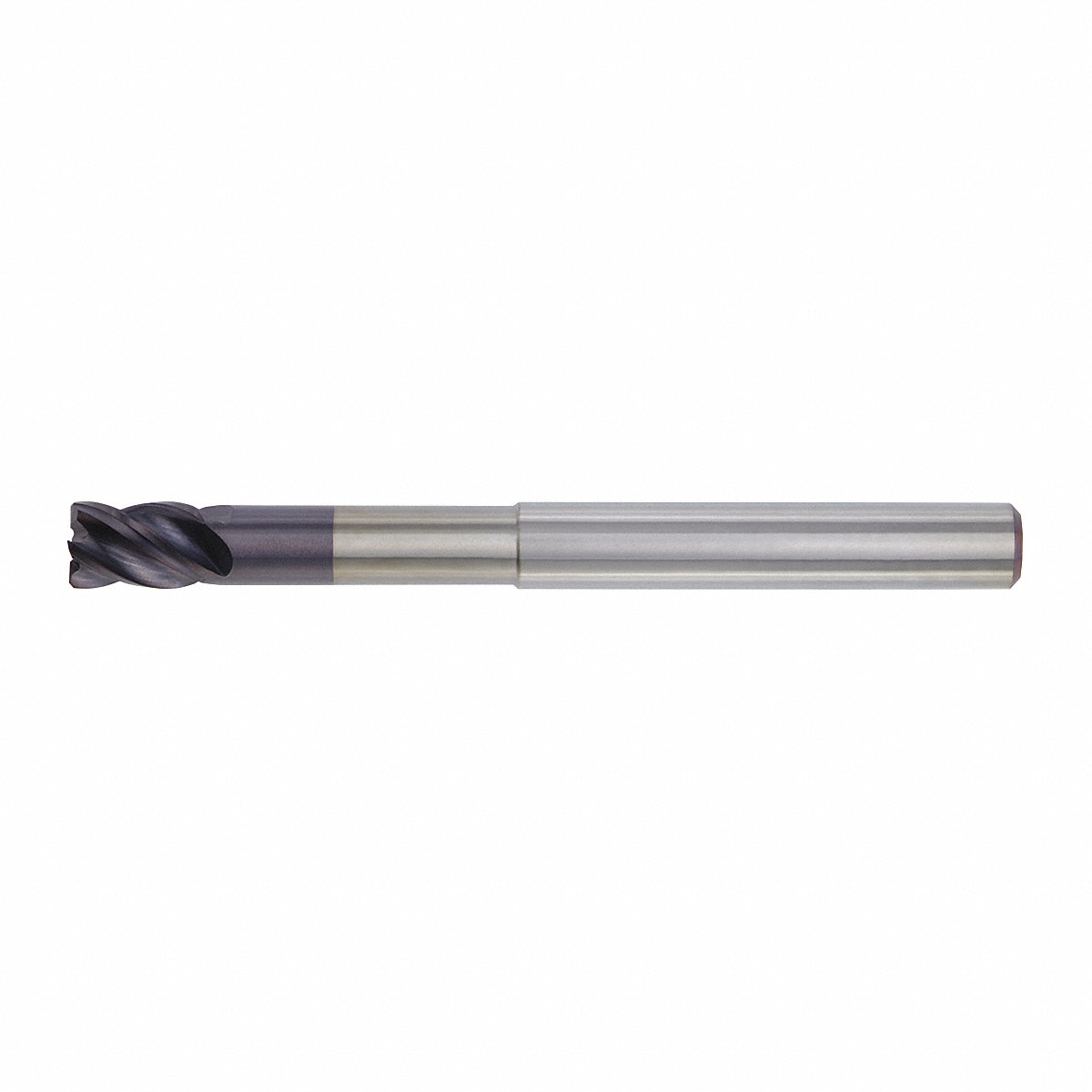

Widia Hanita Corner Chamfer End Mill 1 in Carbide (TF4VN525018)

Number of Flutes: 4

Shank Dia.: 1 in

Finish - Machining: TiAlN

ISO Material Group: H, S, P, M, K

Length of Cut: 1-1/8 in

End Mill Application: Roughing/Finishing

Overall Length: 5-1/2 in

End Mill Style: Corner-Chamfer

Material Application: Nickel, Titanium, Steel, Hardened Steel, Cast Iron, Stainless Steel

Measurement System: Inch

Milling Diameter: 1 in

Material - Machining: Carbide

Cutting Direction: Right Hand

Flute Spacing: Variable

Flute Type: Spiral

List Number: 4VN5

Neck Dia.: 0.94 in

End Mill Cutting Type: Center Cutting

Chamfer Width: 0.02 in

Helix Angle: 38 Degrees

Neck Length: 3.25 in

Single End/Double End: Single

Shank Type - Machining: Weldon Flat
