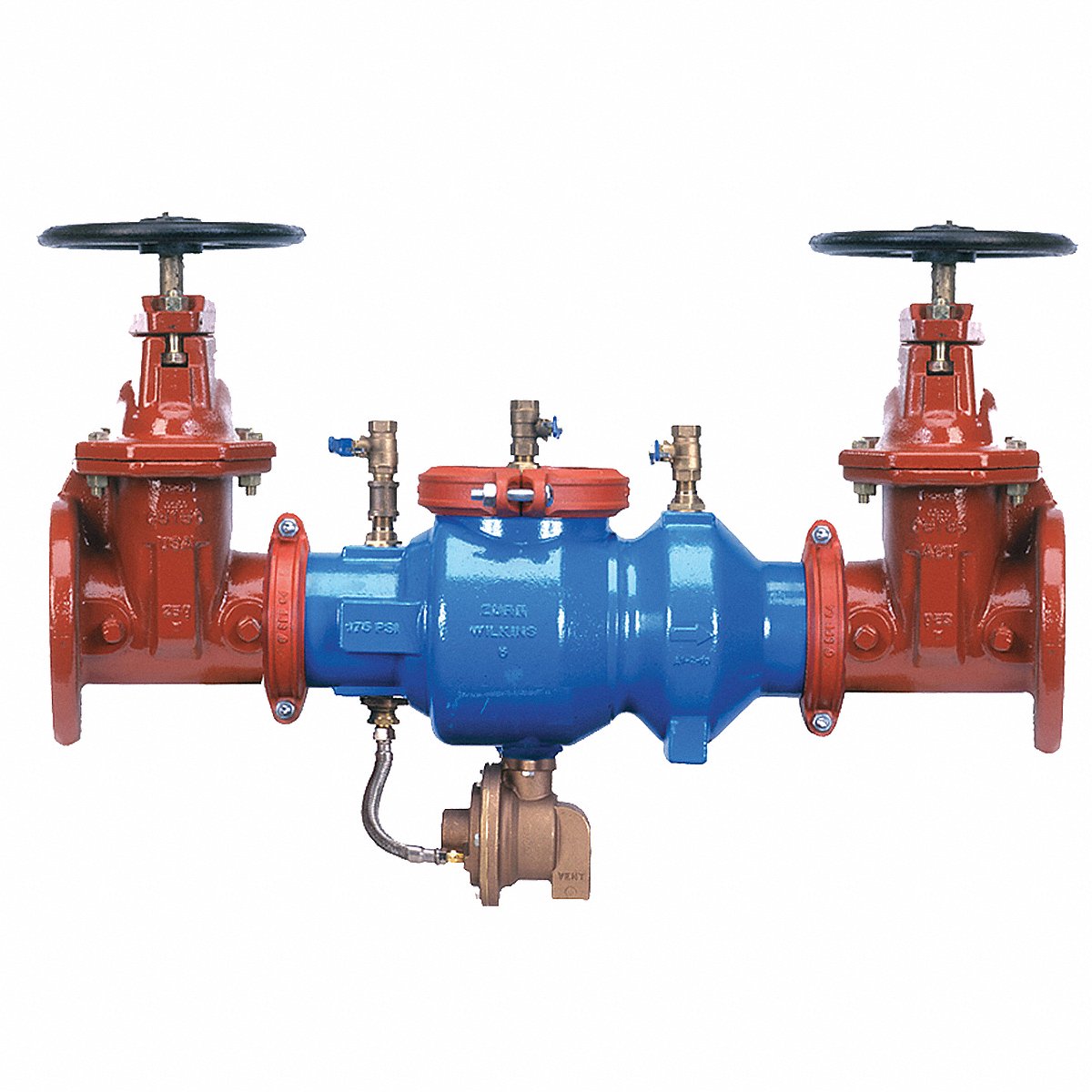

Wilkins Reduced Pressure Zone Backflow Preventer (3-375A)

Body Material: Ductile Iron

Configuration: Standard Configuration

Overall Length: 36.13 in

Valve Series: 375, 375A

For Media: Water

Pipe Size: 3 in

Overall Width: 11.75 in

Mounting Orientation: Vertical, Horizontal

Overall Height: 29.88 in

Media Temp. Range: 33 Degrees F - 140 Degrees F

Seal Material: EPDM

Shut-Off Valve Included: NRS Gate Valve

Standards: NYC MEA 484-04-M, CSA B64.4, ASSE 1013, FM, Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California, C-UL Classified, NSF/ANSI/CAN, AWWA C511, AWWA C550, UL Listed, cUPC Listed

Max. Pressure (CWP): 175 psi

Connection Type: Flange
